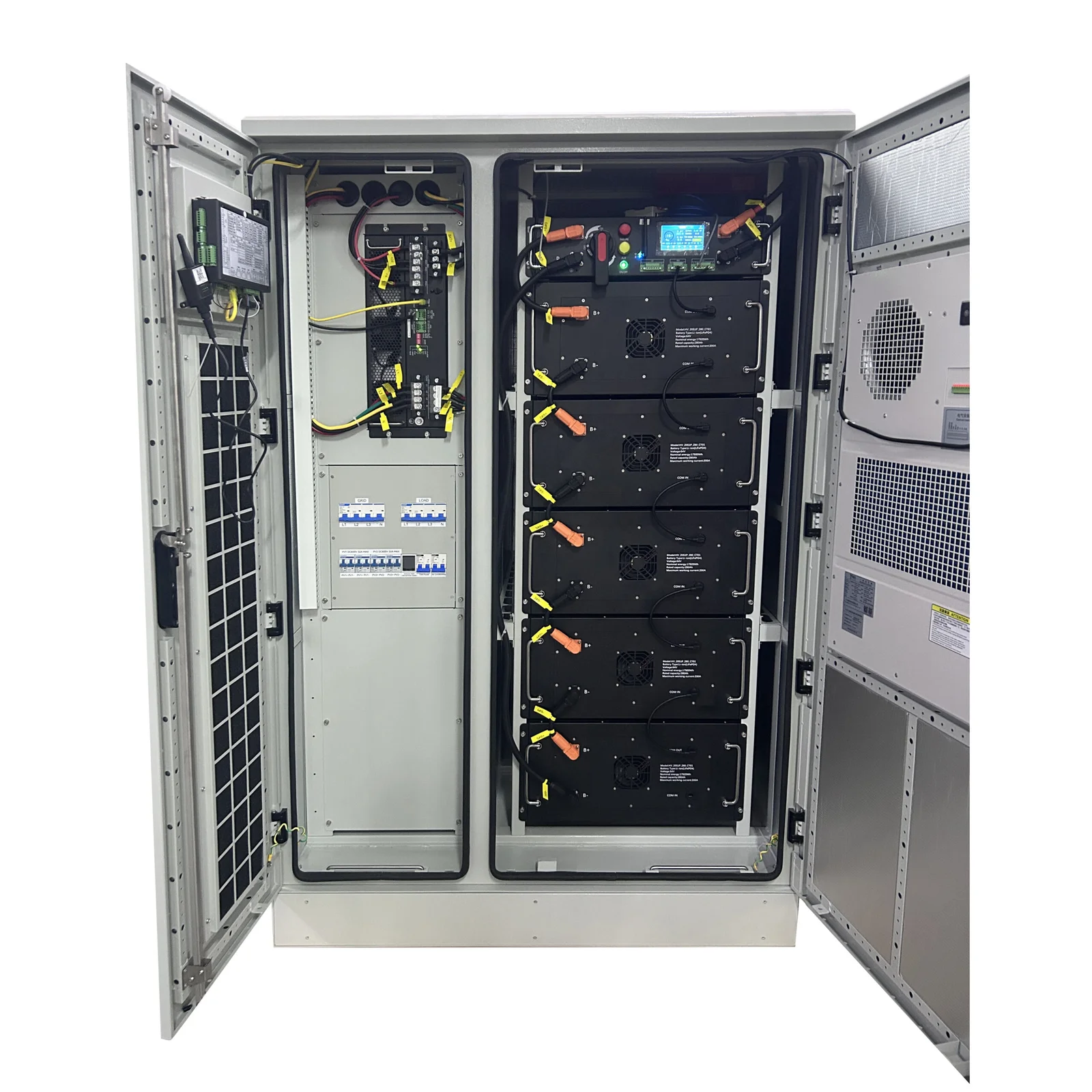

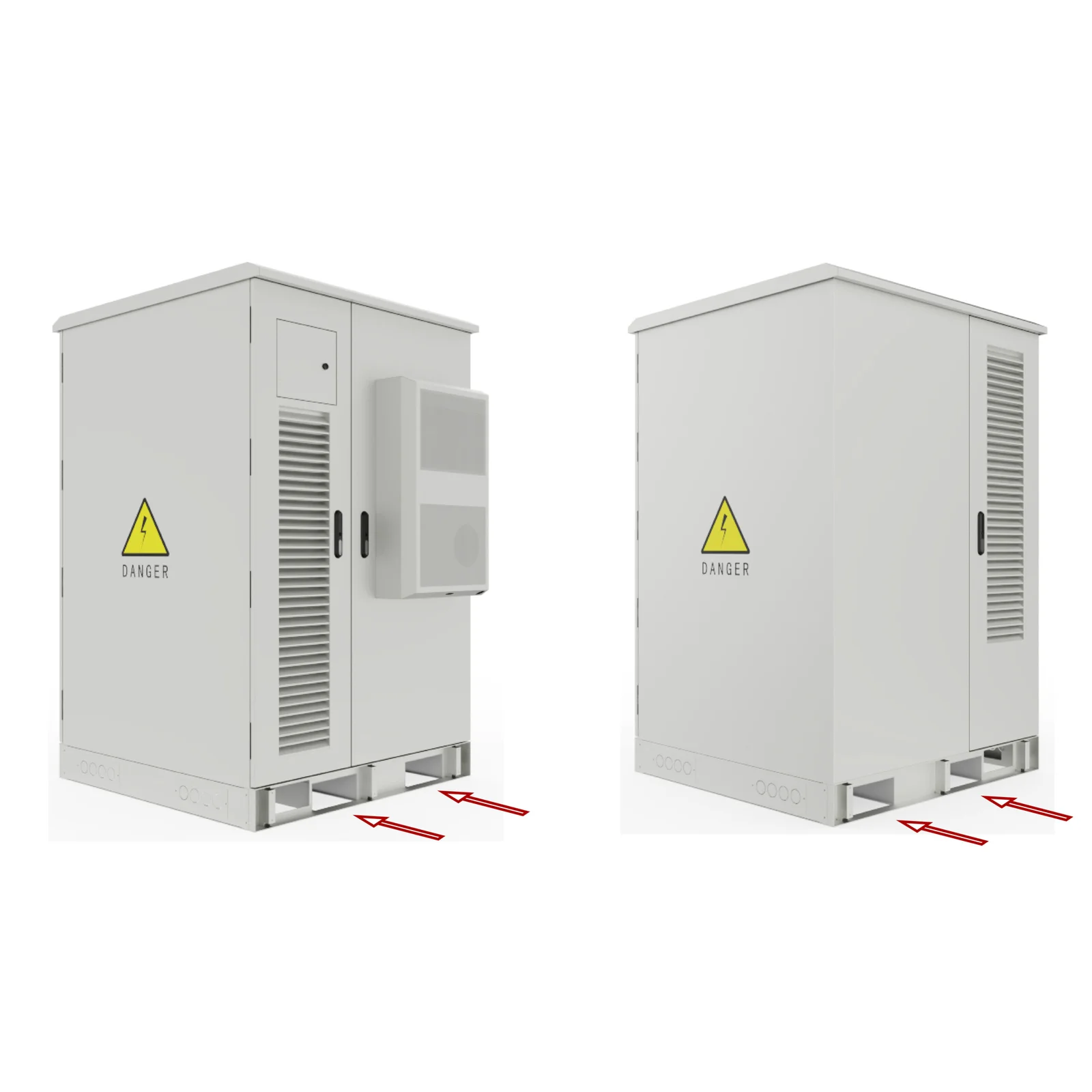

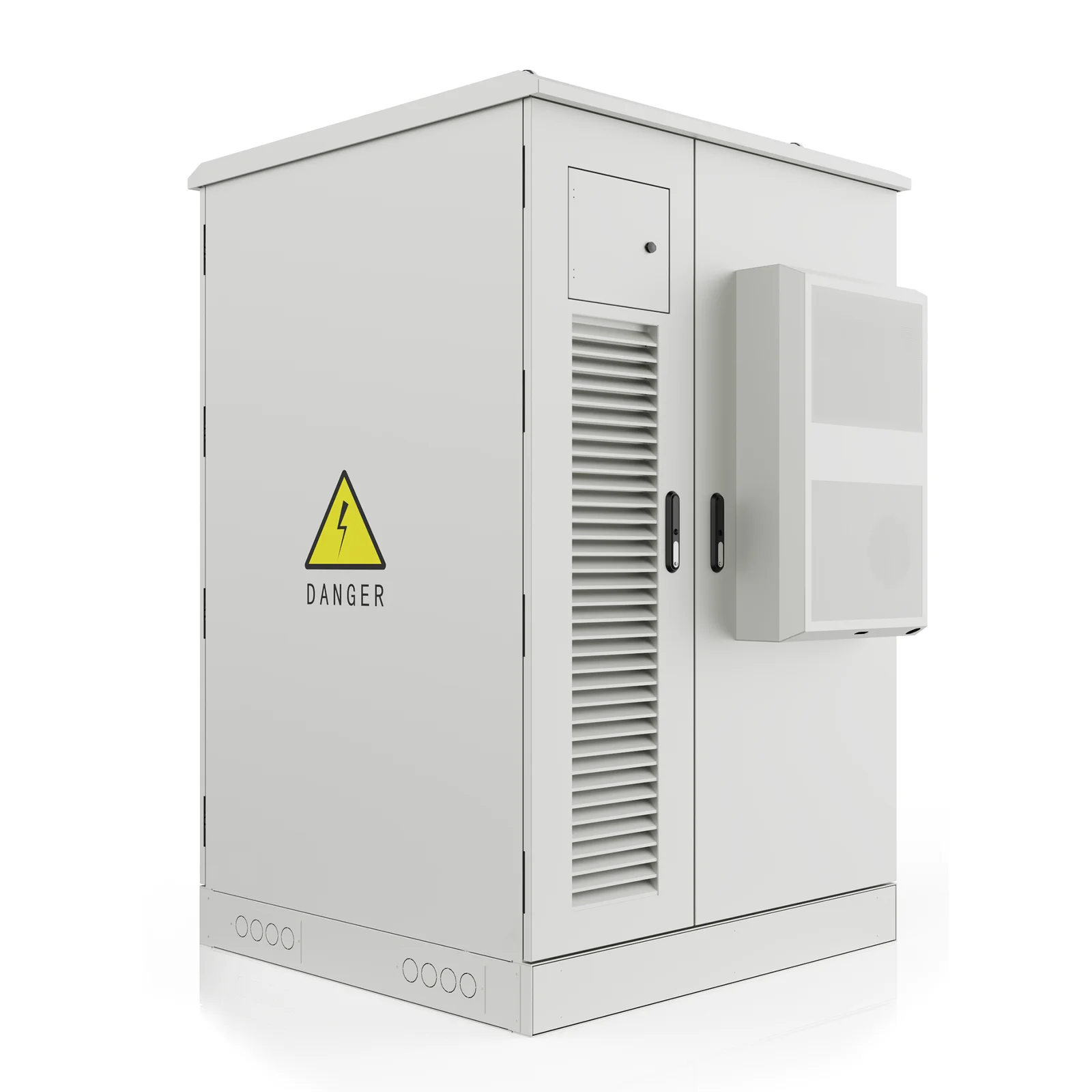

120Kwh 60Kw Energy Storage Container Bess Solar Battery Energy Storage System
- May 8
- 1 min read
120Kwh 60Kw Energy Storage Container Bess Solar Battery Energy Storage System
Battery Module:
Voltage: 76.8V
Capacity: 314Ah
Energy: 24.11kWh
Cooling Mode: Air Cooling
Battery Cluster:
Rated Voltage: 438V
Grouping: 1P120S
Rated Capacity: 314Ah
Output Voltage Range: 300V~438V
Rated Energy: 120KWh
Maximum Pulse Discharging Current: 157A
Maximum Continuous Charging Current: 157A
Maximum Continuous Discharging Current: 157A
Charge Cut-off Voltage: 420V
Discharge Cut-off Voltage: 336V
Communication Method: RS485/CAN
Battery System
System Grouping:1 Cluster in Parallel
Rated Power:PCS 30 kw/PV 38.4kw
Rated Voltage:384V
DC Voltage Range:336V~420V
Rated Energy: 120KWh
