51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home
- May 3
- 2 min read
This is a multifunctional inverter/charger that integrates a pure sine wave inverter, a solar charger, and a battery charger into one unit, providing uninterrupted and stable power supply;
✅It has a built-in intelligent charging algorithm that effectively optimizes charging efficiency and significantly extends battery lifespan;
✅It features multiple automatic protection functions against overload, overheating, and short circuits to ensure stable system operation around the clock;

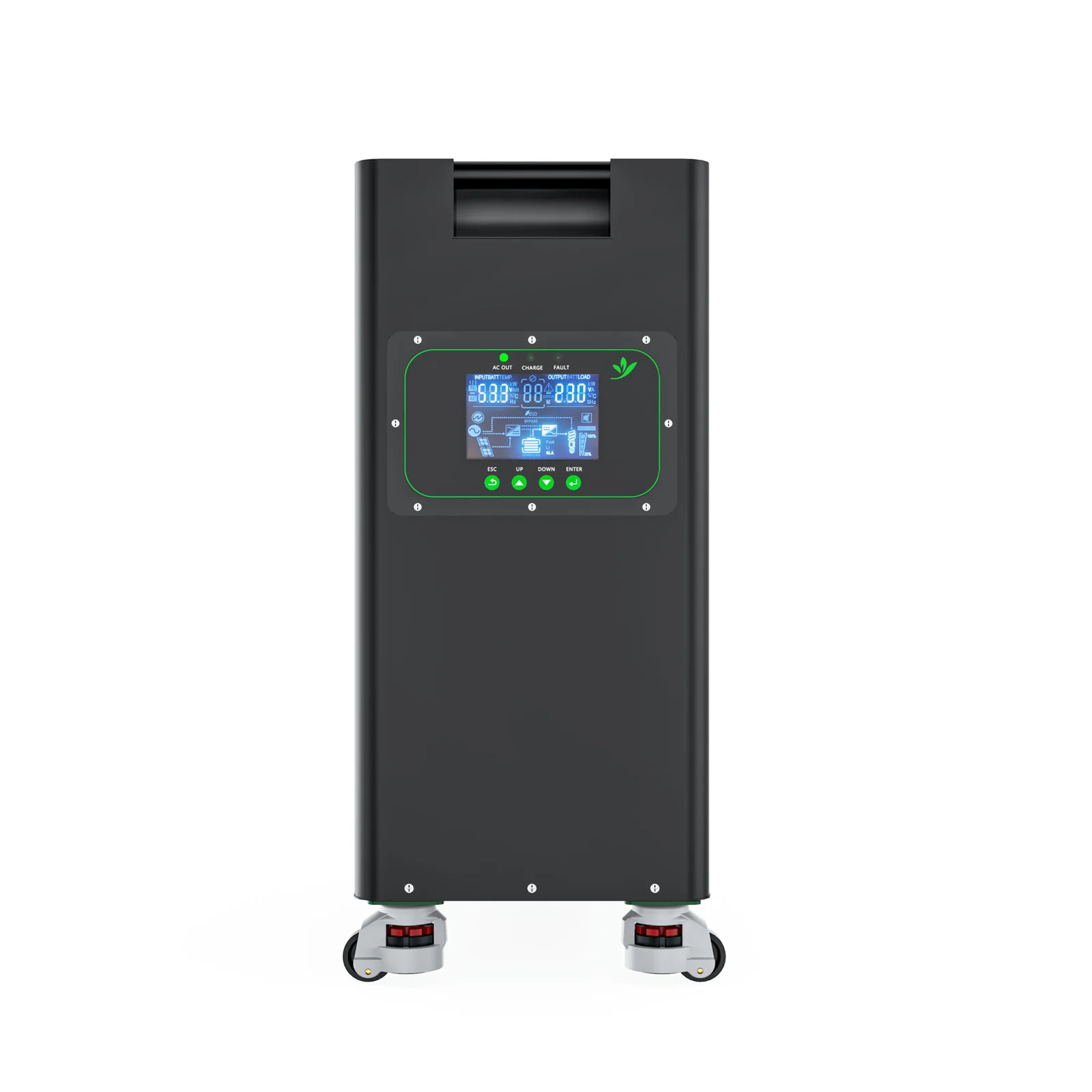

✅Equipped with an LCD display, key parameters are clear at a glance, supporting user-defined settings and making operation simple.
✅We offer outdoor waterproof styles, which are not afraid of harsh environments and meet the needs of various application scenarios.
‼️Advantages and Features
• Fully digital voltage and current dual closed-loop control, utilizing advanced SPWM technology to output pure sine waves
• Supports multiple operating modes: grid-connected, off-grid, and grid-connected energy storage
• Provides energy-saving mode to reduce no-load losses
• Offers four charging modes: solar only, grid power priority, solar priority, and grid mixed charging
• Equipped with dual activation function for lithium batteries, which can be triggered by either grid power or photovoltaic sources
• Optional WiFi/GPRS remote monitoring module
• Equipped with multiple protection features, including over-voltage protection, under-voltage protection, overload protection, and 360° all-around protection
• Built-in battery balancing charging function optimizes battery performance and extends lifespan
• Users can adjust charging current and voltage
•Support parallel connection operation Product Specification 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one.
Rated Energy: 5.37Kwh
Nominal capacity:105Ah
Nominal voltage:51.2V
Output Power:6200W
Output Voltage:230Vac±5%
Output frequency:50Hz/60Hz
Mains charging current:DC 80A MAX
Load-bearing motor energy:4HP
PV Maximum Open-Circuit: 500Vdc
PV operating voltage range: 120Vdc~500Vdc
Maximum PV Input Power:6000W
Maximum PV input current: 22A
PV charging current:DC 100A MAX
Hybrid charging current:DC 100A MAX
Cycle life:6000+
Product size:500*250*640mm
Weight:61kg
