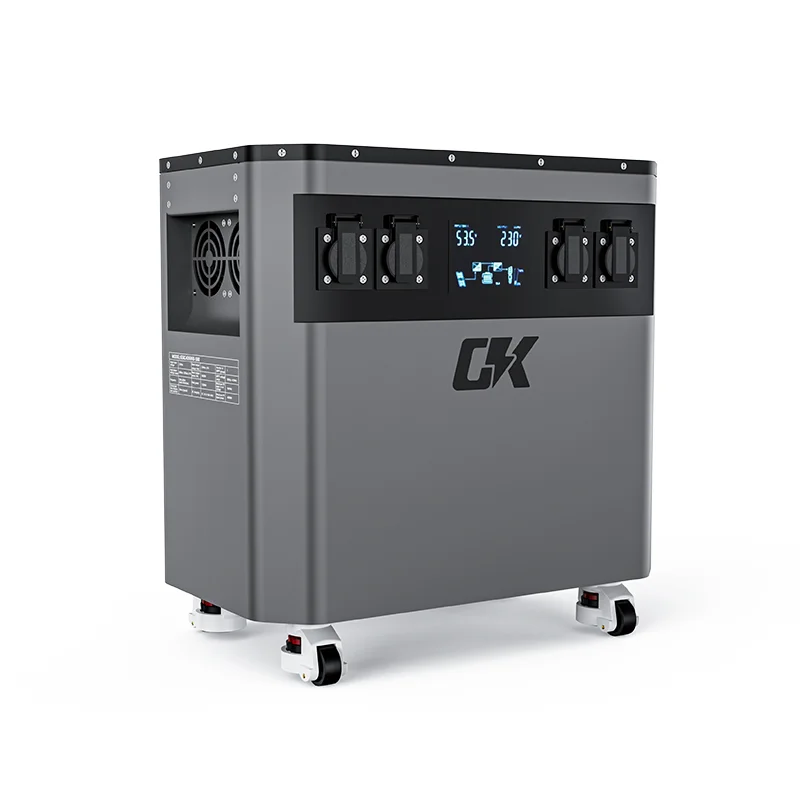

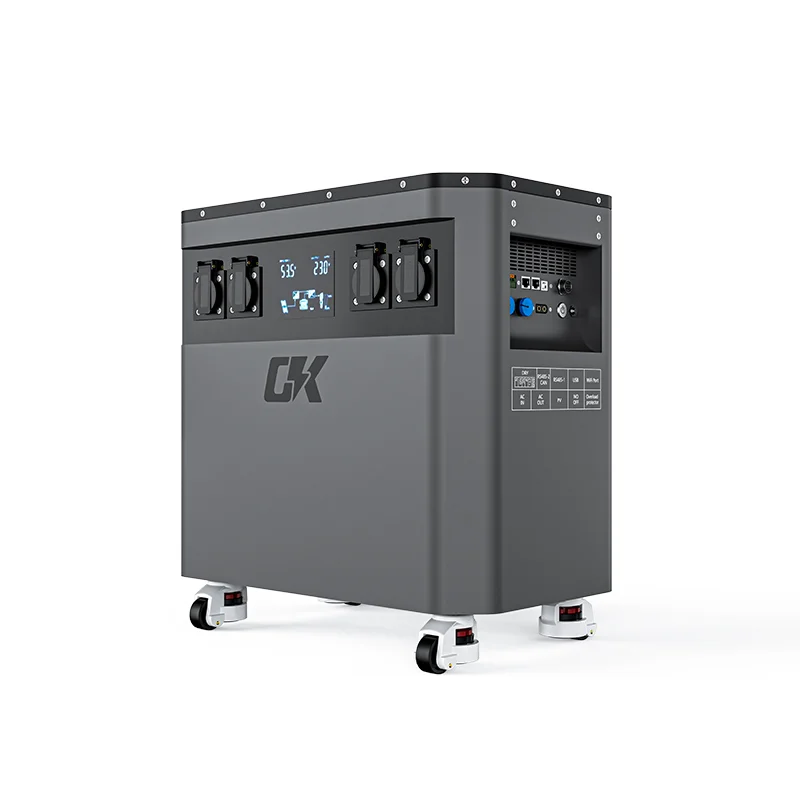

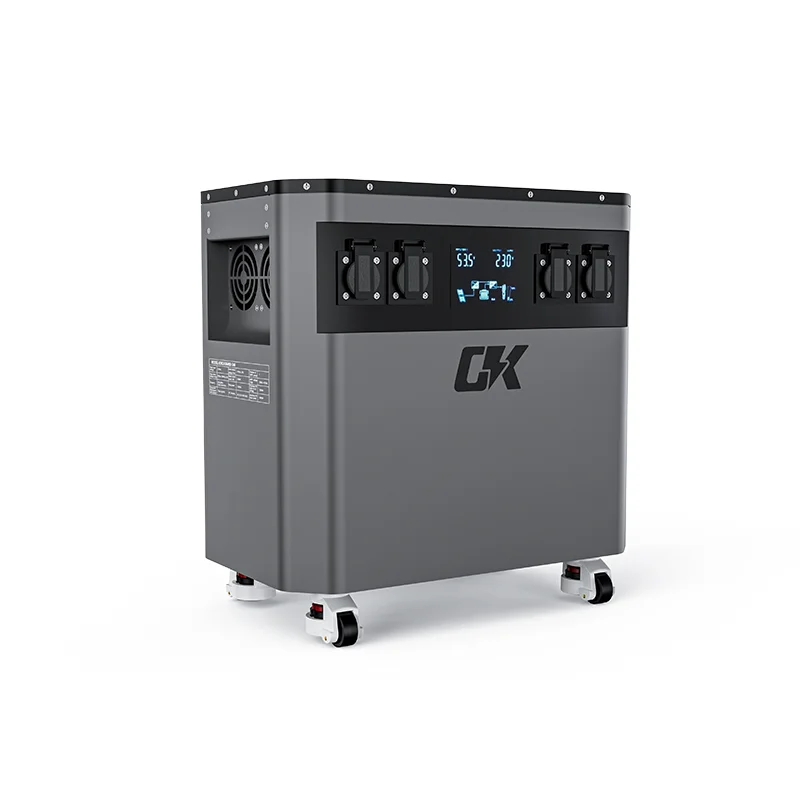

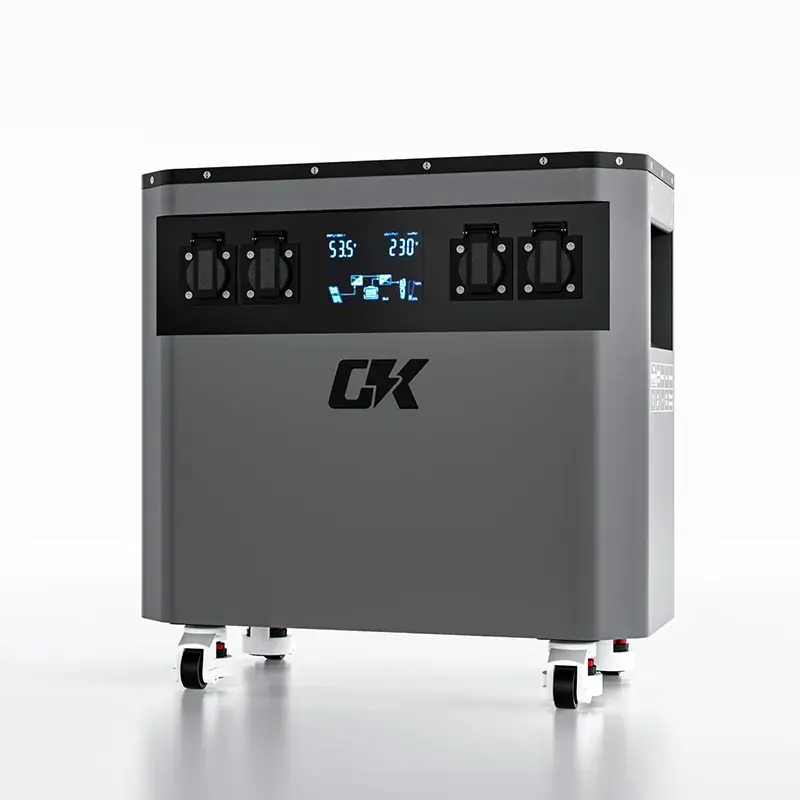

7.68Kwh Portable Lithium Iron Phosphate Home Storage Battery Pack All in One Power System Solar Energy System
- May 3
- 1 min read
This is a multi-functional inverter/charger that combines an inverter, solar charger and battery charger Function, provide uninterruptible power support. Its comprehensive LCD display provides user configurable and easy to operate press Operation, such as battery charging current, AC/solar.
Feature:
Pure sine wave inverter
The input voltage range can be configured for household appliances and personal computers through LCD Settings
Set application-based configurable battery charging current via LCD
Ac/solar charger priority can be configured through LCD Settings
Compatible with power supply voltage or generator power supply
The system automatically restarts when the AC power is restored
Overload/overheat/short circuit protection
Intelligent battery charger design to optimize battery performance
Cold start function
Specification Parameters
Battery Nominal Voltage: 25.6Vdc
Battery Nominal Capacity: 300Ah
Battery Nominal Power:7.68kWh
0utput Power:3600W
Output Voltage: 120Vac±5%
Output Frequency:50Hz/60Hz
Mains Supply 0utput Voltage:(170Vac-280Vac)±2%@UPS Mode; (90Vac-280Vac)±2%@APL Generator Mode
Mains Supply Charge Current:DC 40A MAX
Loaded Motor Energy: 2HP
PV Max Open-Circuit Voltage: 300Vdc
PV Operating Voltage Range: 120Vdc~300Vdc
Max PV Input Power: 4500W
Max PV Input Current: 27A
PV Charge Current: DC 80A MAX
Hybrid Charge Current:DC 80A MAX
Cycle Lifetime: 6000time+
Product Dimension: 508*308*525mm
Net Weight: 68Kg
